Indusi (Part 2)

The Details

Here I will describe how the detection of the magnets influences the train. The details vary a little depending on which type of Indusi equipment is used, here I will cover the properties of the PZB 90 for Zugart (train type) "O" (Obere Klasse: Upper class, i.e. fast passenger trains)

If any test fails (i.e. driver does not react appropriately or speed is beyond the limit), an emergency braking occurs.

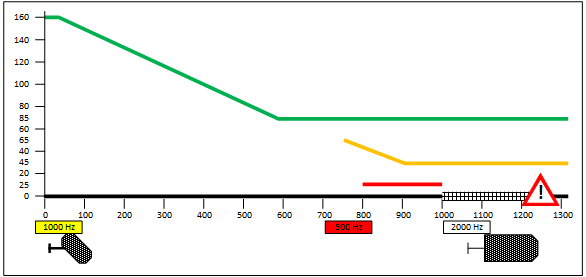

Geschwindigkeitskurven PZB 90

1000 Hz magnet

The 1000 Hz magnet is usually placed with the distant signal, i.e. some 1000 m before the main signal and some 1200 m before the danger point protected by that main signal. That danger point could be e.g. a clear-of-points marker, a crossing etc.

If the 1000 Hz magnet is detected, the driver has four seconds to acknowledge by pressing the "Indusi Wachsam" (Indusi on alert) button camera.gif (1065 Byte). Then, the train's speed is constantly compared against a limit, which starts at 165 km/h and within the next 23 seconds is lowered to 85 km/h (brown curve).

If the train does not stop (e.g. because of a halt or platform), and no 500 Hz magnet is detected, the limit is maintained at 85 km/h until 1250 m after the 1000 Hz magnet. At 700 m after the 1000 Hz magnet, the driver can press the "Indusi frei" (Indusi release) button to end the speed restriction, e.g. if he can see that the signal in advance has changed to clear. This is called "to release oneself from the (1000 Hz) speed control".

However, if the driver has released himself from the 1000 Hz speed restriction, and then a 500 Hz magnet is detected within 1250 m after the 1000 Hz magnet, indicating that the signal is still at stop, the driver probably has wrongly released himself from the speed control and gets - an emergency braking, what else?

500 Hz magnet

The 500 Hz magnet is placed at some 150 to 250 m before the main signal, or about 450 m before the danger point.

If a 500 Hz magnet is detected, a speed limit of 65 km/h is applied and lowered to 45 km/h within the next 153 m, then stays at 45 km/h for the next 250 m (red curve). Release from that limit is not possible.

Note that if the restriction to 45 km/h has ended 403 m (153 m+250 m) after the 500 Hz magnet, the restriction to 85 km/h imposed by the 1000 Hz magnet may still be active.

2000 Hz magnet

The 2000 Hz magnet is placed with the main signal, or at some 200 m (down to 50 m or up to 400 m in special cases) before the danger point.

A detection of a 2000 Hz magnet always causes an emergency braking. If our driver made it until here (without emergency braking), his speed is at maximum 45 km/h, so the braking should get him to stop before the danger point, even if he chooses to pass the red signal, so even a SPAD1 shouldn't cause an accident.

1) SPAD: Signal Passed At Danger. British Railtrack even invented a SPAD indicator signal(!), which is a signal telling you that you have just run a red signal (and must stop now) (NB: What then is a British stop aspect for...), and they otherwise love counting SPADs. For current statistics see Her Majesty's Railway Inspectorate web site)

Intermediate halt
