The yellow lighting indicates set routes.
The yellow background (target 004) is a level crossing.
These pictures are from Schweinfurt signal box.
This signal box is a SpDrL60, it is operational since 1976, when it replaced four signal boxed that had been in operation partly since 1896.
The pictures are by courtesy of Michael Urlaub.
| |

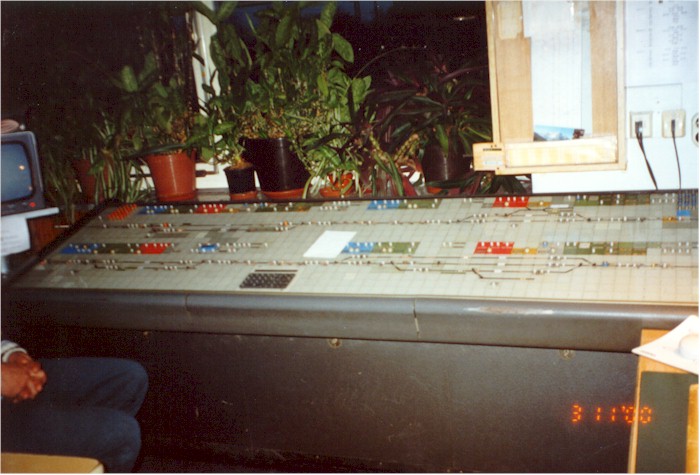

A full view of the control panel in the Schweinfurt signal box |
| |
The main control panel of the Schweinfurt signal box. |
| |
The upper track is for bidirectional operation, the arrow (between the
LED display and the target 456) indicates the currently authorised direction. The yellow lighting indicates set routes. The yellow background (target 004) is a level crossing. |
| |
Train # 206xx is leaving to the left towards target 451, the route is set towards targets 061, 062,... |
| |
A diverging route is set up from target 083 to the left. The track between target 083 to the signal is already occupied (hence the red lighting). The signal (magnified) shows Hp 0+Sh 1, hence this is a shunting movement. |
| |
A small signal box near Schweinfurt. |
